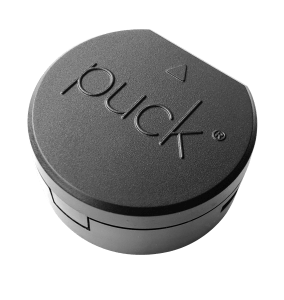

Puck Technical Specifications

Features:

  • Microsuction cup adhesive
  • Bluetooth 4.1
  • Infrared Emitter
  • Identification LED
  • Black Polycarbonate shell

Dimensions:

  • Height: 0.68 inches
  • Diameter: 1.5 inches

Power and Battery:

  • Replaceable Energizer® 2032 coin cell battery
  • Up to 1 Year under regular use

BLE Module:

  • Bluetooth 4.1
  • Range: Approximately 100 feet
  • Certified to FCC, CE, MIC, KC, and IC regulations. Refer to KBA97094 for RF certification test reports.
    Bluetooth SIG 4.1 qualified

Infrared Emitter:

  • Peak wavelength: λp = 950 nm
  • Angle of half intensity: φ = ± 22°
  • Range to target infrared receiver if placed in front of device: ±18 inches
  • Range to target infrared receiver if flush mounted to device: ±2 inches
  • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

PUCK 2 Technical Specifications

Features:

  • Microsuction cup adhesive
  • Bluetooth 4.2
  • Infrared Emitter
  • Identification LED
  • Black Polycarbonate shell

Dimensions:

  • Height: 0.68 inches
  • Diameter: 1.5 inches

Power and Battery:

  • Replaceable 2032 coin cell battery
  • Up to 1 Year under regular use

BLE Module:

  • Bluetooth 4.2
  • Range: Approximately 150 feet
  • Certified to FCC, CE, MIC, KC, and IC regulations.
    Bluetooth SIG 4.2 qualified

Infrared Emitter:

  • Peak wavelength: λp = 950 nm
  • Angle of half intensity: φ = ± 22°
  • Range to target infrared receiver if placed in front of device: ±15 feet
  • Range to target infrared receiver if flush mounted to device: ±8 inches
  • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

PUCKmed/PUCKpro Technical Specifications

Features:

  • Microsuction cup adhesive
  • Bluetooth 4.2
  • Infrared Emitter
  • Multi-Color LED
  • Black Polycarbonate shell
  • USB-C Port
  • Rechargeable LiPo Battery
  • Push-Button Power/Reset Switch

Dimensions:

  • Height: 0.68 inches
  • Diameter: 1.5 inches

Power and Battery:

  • 400 mAh Lithium-ion Battery
  • USB-C power and charging port

Bluetooth SoC:

  • Bluetooth 4.2
  • Range: Approximately 150 feet
  • Certified to FCC, CE, MIC, KC, and IC regulations.
    Bluetooth SIG 4.2 qualified

Infrared Emitter:

  • Peak wavelength: λp = 950 nm
  • Angle of half intensity: φ = ± 22°
  • Range to target infrared receiver if placed in front of device: ±30 feet
  • Range to target infrared receiver if flush mounted to device: ±8 inches
  • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
